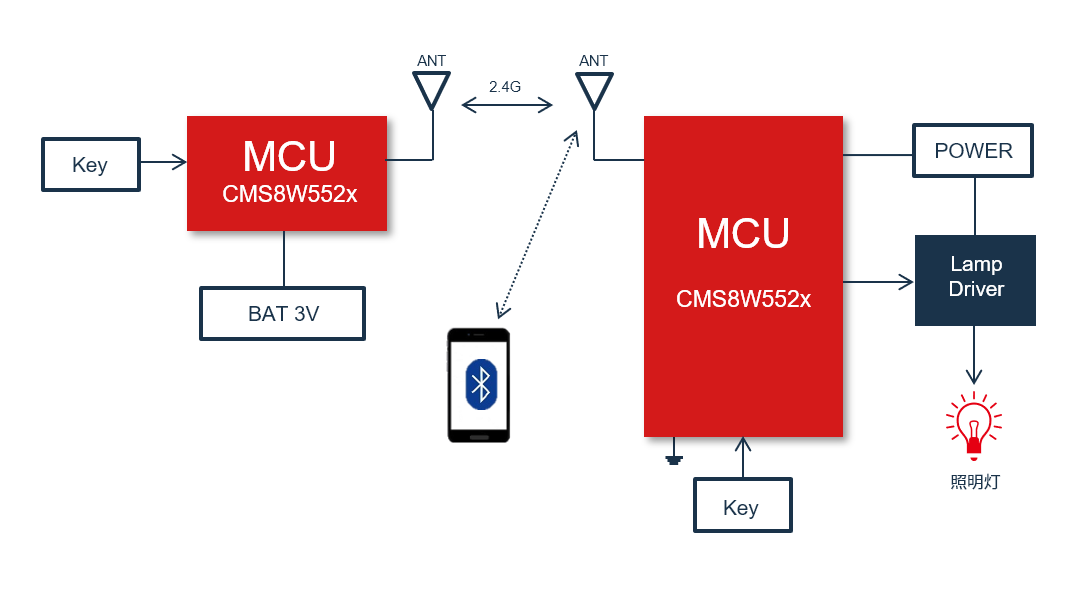

LED lighting refers to a distributed wireless telemetry, remote control, and remote communication control system composed of Internet of Things technology, wired/wireless communication technology, computer intelligent information processing, and energy-saving electrical control. Soft start, timing control, scene setting and other functions, and achieve predetermined lighting effects. Tuoneng Semiconductor is based on ultra-low-power high-performance 8-bit RISC wireless SoC - CMS8W552x solution, which supports lamp brightness and color temperature control functions. Support remote and local area network control.

CMS8W552x intelligent lighting solution performance characteristics:

> The transmitter supports adjustable power, the maximum transmit power can reach 8dBm, and the wireless distance is more than 40 meters

> The receiver adopts a low-IF structure, and the receiving sensitivity can reach -91dBm@1Mbps

> Standby power consumption is less than 2uA, support wake-up

> Support 4~16KB Flash program space

> Transmit current 19mA@3.3V, receive current 17mA@3.3V

> Support FCC/ESTI and other certification standards
